Deconvoluting spatialATAC data with Cell2Location#
In this tutorial, we go over how to run Cell2Location with deconvATAC.
Import libraries#
[1]:
import warnings
warnings.filterwarnings('ignore')
from deconvatac.tl import cell2location
from deconvatac.pp import highly_variable_peaks
import scanpy as sc
import pandas as pd
import numpy as np
Read in the data#
We will use the human melanoma dataset by Russell et al.. The data is available for download on Zenodo in example_notebooks.zip.
[ ]:
russell_st = sc.read_h5ad("./example_notebooks/cell2location/russell_250_atac.h5ad")
russell_st
AnnData object with n_obs × n_vars = 360 × 53451
obs: 'cell_count'
var: 'features'
uns: 'log1p', 'proportion_names'
obsm: 'proportions', 'spatial'
layers: 'log_norm', 'tfidf_normalized'
[ ]:
russell_sc = sc.read_h5ad("./example_notebooks/cell2location/russel_ref_atac.h5ad")
russell_sc
AnnData object with n_obs × n_vars = 2535 × 53451
obs: 'barcodes', 'NAME_x', 'X', 'Y', 'cell_type', 'NAME_y', 'biosample_id', 'donor_id', 'species', 'species__ontology_label', 'disease', 'disease__ontology_label', 'organ', 'organ__ontology_label', 'library_preparation_protocol', 'library_preparation_protocol__ontology_label', 'sex', 'cluster'
var: 'features'
uns: 'cell_type_colors', 'log1p'
obsm: 'X_umap', 'spatial'
layers: 'log_norm', 'tfidf_normalized'
[4]:
# Calculate the most probable cluster assignment
max_prob_cluster = np.argmax(russell_st.obsm["proportions"], axis=1)
# Get the column names
cluster_id = russell_st.uns["proportion_names"]
russell_st.obs["ground truth"] = cluster_id[max_prob_cluster]
russell_st.obs['ground truth'] = pd.Categorical(russell_st.obs['ground truth'], categories=russell_sc.obs.cell_type.cat.categories)
russell_st.uns["ground truth_colors"] = russell_sc.uns["cell_type_colors"].copy()

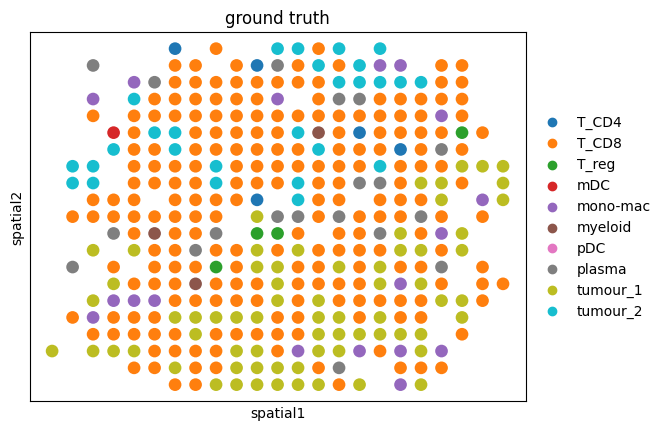

sc.pl.embedding(russell_st, basis = "spatial", color = "ground truth")

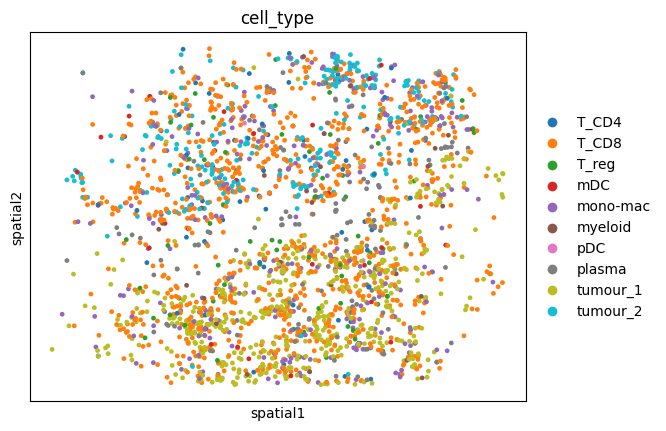

sc.pl.embedding(russell_sc, basis = "spatial", color = "cell_type")
Select HVFs with deconvATAC#
Before running deconvolution, the feature space should be subsetted onto a smaller space. Since the method of highly variable feature selection shows greater performance than the highly accessible feature approach, we will select features using the deconvatac.pp.highly_variable_peaks function.
The deconvatac.pp.highly_variable_peaks function selects the highly variable features in place and saves the result to .var["highly_variable"]. It takes as input the key in .obs of the clusters by which the method identifies highly variable peaks across. In our case, the cluster_key is the cell type.
[26]:
highly_variable_peaks(adata=russell_sc, cluster_key="cell_type")
[27]:
russell_st = russell_st[:, russell_sc.var["highly_variable"]]
russell_sc = russell_sc[:, russell_sc.var["highly_variable"]]

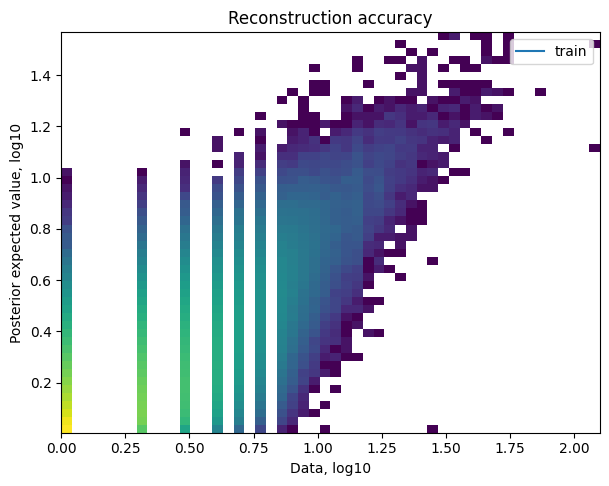

Run Cell2Location#
[16]:
russell_st, russell_sc = cell2location(adata_spatial=russell_st, adata_ref=russell_sc, N_cells_per_location=8, detection_alpha=20
, labels_key="cell_type", use_gpu=False, max_epochs_spatial=400, max_epochs_ref=400, return_adatas=True)
Anndata setup with scvi-tools version 1.0.3.
Setup via `RegressionModel.setup_anndata` with arguments:
{ │ 'layer': None, │ 'batch_key': None, │ 'labels_key': 'cell_type', │ 'categorical_covariate_keys': None, │ 'continuous_covariate_keys': None }
Summary Statistics ┏━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━┓ ┃ Summary Stat Key ┃ Value ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━┩ │ n_batch │ 1 │ │ n_cells │ 2535 │ │ n_extra_categorical_covs │ 0 │ │ n_extra_continuous_covs │ 0 │ │ n_labels │ 10 │ │ n_vars │ 20000 │ └──────────────────────────┴───────┘
Data Registry ┏━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ Registry Key ┃ scvi-tools Location ┃ ┡━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩ │ X │ adata.X │ │ batch │ adata.obs['_scvi_batch'] │ │ ind_x │ adata.obs['_indices'] │ │ labels │ adata.obs['_scvi_labels'] │ └──────────────┴───────────────────────────┘
batch State Registry ┏━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━┓ ┃ Source Location ┃ Categories ┃ scvi-tools Encoding ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━┩ │ adata.obs['_scvi_batch'] │ 0 │ 0 │ └──────────────────────────┴────────────┴─────────────────────┘
labels State Registry ┏━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━┓ ┃ Source Location ┃ Categories ┃ scvi-tools Encoding ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━┩ │ adata.obs['cell_type'] │ T_CD4 │ 0 │ │ │ T_CD8 │ 1 │ │ │ T_reg │ 2 │ │ │ mDC │ 3 │ │ │ mono-mac │ 4 │ │ │ myeloid │ 5 │ │ │ pDC │ 6 │ │ │ plasma │ 7 │ │ │ tumour_1 │ 8 │ │ │ tumour_2 │ 9 │ └────────────────────────┴────────────┴─────────────────────┘
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/scvi/train/_trainrunner.py:76: UserWarning: `use_gpu` is deprecated in v1.0 and will be removed in v1.1. Please use `accelerator` and `devices` instead.
accelerator, lightning_devices, device = parse_device_args(
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/fabric/plugins/environments/slurm.py:168: PossibleUserWarning: The `srun` command is available on your system but is not used. HINT: If your intention is to run Lightning on SLURM, prepend your python command with `srun` like so: srun python /vol/storage/miniconda3/envs/cell2loc_env/lib/python ...
rank_zero_warn(
GPU available: False, used: False
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/fabric/plugins/environments/slurm.py:168: PossibleUserWarning: The `srun` command is available on your system but is not used. HINT: If your intention is to run Lightning on SLURM, prepend your python command with `srun` like so: srun python /vol/storage/miniconda3/envs/cell2loc_env/lib/python ...
rank_zero_warn(
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/pytorch/trainer/configuration_validator.py:69: UserWarning: You passed in a `val_dataloader` but have no `validation_step`. Skipping val loop.
rank_zero_warn("You passed in a `val_dataloader` but have no `validation_step`. Skipping val loop.")
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/pytorch/loops/fit_loop.py:281: PossibleUserWarning: The number of training batches (2) is smaller than the logging interval Trainer(log_every_n_steps=10). Set a lower value for log_every_n_steps if you want to see logs for the training epoch.
rank_zero_warn(
Epoch 400/400: 100%|██████████| 400/400 [16:34<00:00, 2.57s/it, v_num=1, elbo_train=8.85e+6]
`Trainer.fit` stopped: `max_epochs=400` reached.
Epoch 400/400: 100%|██████████| 400/400 [16:34<00:00, 2.49s/it, v_num=1, elbo_train=8.85e+6]
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/fabric/plugins/environments/slurm.py:168: PossibleUserWarning: The `srun` command is available on your system but is not used. HINT: If your intention is to run Lightning on SLURM, prepend your python command with `srun` like so: srun python /vol/storage/miniconda3/envs/cell2loc_env/lib/python ...
rank_zero_warn(
Sampling local variables, batch: 0%| | 0/20 [00:00<?, ?it/s]
Sampling global variables, sample: 100%|██████████| 999/999 [00:18<00:00, 55.49it/s]
Anndata setup with scvi-tools version 1.0.3.
Setup via `Cell2location.setup_anndata` with arguments:
{ │ 'layer': None, │ 'batch_key': None, │ 'labels_key': None, │ 'categorical_covariate_keys': None, │ 'continuous_covariate_keys': None }
Summary Statistics ┏━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━┓ ┃ Summary Stat Key ┃ Value ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━┩ │ n_batch │ 1 │ │ n_cells │ 360 │ │ n_extra_categorical_covs │ 0 │ │ n_extra_continuous_covs │ 0 │ │ n_labels │ 1 │ │ n_vars │ 20000 │ └──────────────────────────┴───────┘
Data Registry ┏━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ Registry Key ┃ scvi-tools Location ┃ ┡━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩ │ X │ adata.X │ │ batch │ adata.obs['_scvi_batch'] │ │ ind_x │ adata.obs['_indices'] │ │ labels │ adata.obs['_scvi_labels'] │ └──────────────┴───────────────────────────┘
batch State Registry ┏━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━┓ ┃ Source Location ┃ Categories ┃ scvi-tools Encoding ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━┩ │ adata.obs['_scvi_batch'] │ 0 │ 0 │ └──────────────────────────┴────────────┴─────────────────────┘
labels State Registry ┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━┓ ┃ Source Location ┃ Categories ┃ scvi-tools Encoding ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━┩ │ adata.obs['_scvi_labels'] │ 0 │ 0 │ └───────────────────────────┴────────────┴─────────────────────┘
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/fabric/plugins/environments/slurm.py:168: PossibleUserWarning: The `srun` command is available on your system but is not used. HINT: If your intention is to run Lightning on SLURM, prepend your python command with `srun` like so: srun python /vol/storage/miniconda3/envs/cell2loc_env/lib/python ...
rank_zero_warn(
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/scvi/train/_trainrunner.py:76: UserWarning: `use_gpu` is deprecated in v1.0 and will be removed in v1.1. Please use `accelerator` and `devices` instead.
accelerator, lightning_devices, device = parse_device_args(
GPU available: False, used: False
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/fabric/plugins/environments/slurm.py:168: PossibleUserWarning: The `srun` command is available on your system but is not used. HINT: If your intention is to run Lightning on SLURM, prepend your python command with `srun` like so: srun python /vol/storage/miniconda3/envs/cell2loc_env/lib/python ...
rank_zero_warn(
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/pytorch/trainer/configuration_validator.py:69: UserWarning: You passed in a `val_dataloader` but have no `validation_step`. Skipping val loop.
rank_zero_warn("You passed in a `val_dataloader` but have no `validation_step`. Skipping val loop.")
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/pytorch/loops/fit_loop.py:281: PossibleUserWarning: The number of training batches (1) is smaller than the logging interval Trainer(log_every_n_steps=10). Set a lower value for log_every_n_steps if you want to see logs for the training epoch.
rank_zero_warn(
Epoch 400/400: 100%|██████████| 400/400 [01:12<00:00, 6.39it/s, v_num=1, elbo_train=4.14e+6]
`Trainer.fit` stopped: `max_epochs=400` reached.
Epoch 400/400: 100%|██████████| 400/400 [01:12<00:00, 5.50it/s, v_num=1, elbo_train=4.14e+6]
/vol/storage/miniconda3/envs/cell2loc_env/lib/python3.9/site-packages/lightning/fabric/plugins/environments/slurm.py:168: PossibleUserWarning: The `srun` command is available on your system but is not used. HINT: If your intention is to run Lightning on SLURM, prepend your python command with `srun` like so: srun python /vol/storage/miniconda3/envs/cell2loc_env/lib/python ...
rank_zero_warn(
Sampling local variables, batch: 100%|██████████| 3/3 [01:09<00:00, 23.07s/it]
Sampling global variables, sample: 100%|██████████| 999/999 [00:20<00:00, 48.87it/s]
In the returned AnnDatas, we can find the posteriors of the spatial mapping and reference model:
[19]:
russell_st, russell_sc
[19]:
(AnnData object with n_obs × n_vars = 360 × 20000
obs: 'cell_count', 'leiden_pca', 'leiden_lsi', '_indices', '_scvi_batch', '_scvi_labels'
var: 'features', 'highly_variable', 'highly_accessible'
uns: 'leiden', 'log1p', 'lsi', 'neighbors', 'pca', 'proportion_names', '_scvi_uuid', '_scvi_manager_uuid', 'mod'
obsm: 'X_lsi', 'X_pca', 'proportions', 'spatial', 'means_cell_abundance_w_sf', 'stds_cell_abundance_w_sf', 'q05_cell_abundance_w_sf', 'q95_cell_abundance_w_sf'
varm: 'LSI', 'PCs'
layers: 'log_norm', 'tfidf_normalized'
obsp: 'connectivities', 'distances',
AnnData object with n_obs × n_vars = 2535 × 20000
obs: 'barcodes', 'NAME_x', 'X', 'Y', 'cell_type', 'NAME_y', 'biosample_id', 'donor_id', 'species', 'species__ontology_label', 'disease', 'disease__ontology_label', 'organ', 'organ__ontology_label', 'library_preparation_protocol', 'library_preparation_protocol__ontology_label', 'sex', 'cluster', '_indices', '_scvi_batch', '_scvi_labels'
var: 'features', 'highly_accessible', 'highly_variable'
uns: 'cell_type_colors', 'log1p', '_scvi_uuid', '_scvi_manager_uuid', 'mod'
obsm: 'X_umap', 'spatial'
varm: 'means_per_cluster_mu_fg', 'stds_per_cluster_mu_fg', 'q05_per_cluster_mu_fg', 'q95_per_cluster_mu_fg'
layers: 'log_norm', 'tfidf_normalized')
The resulting means_cell_abundance_w_sf and q05_cell_abundance_w_sf cell type abundances are also saved to directory ./cell2location_results

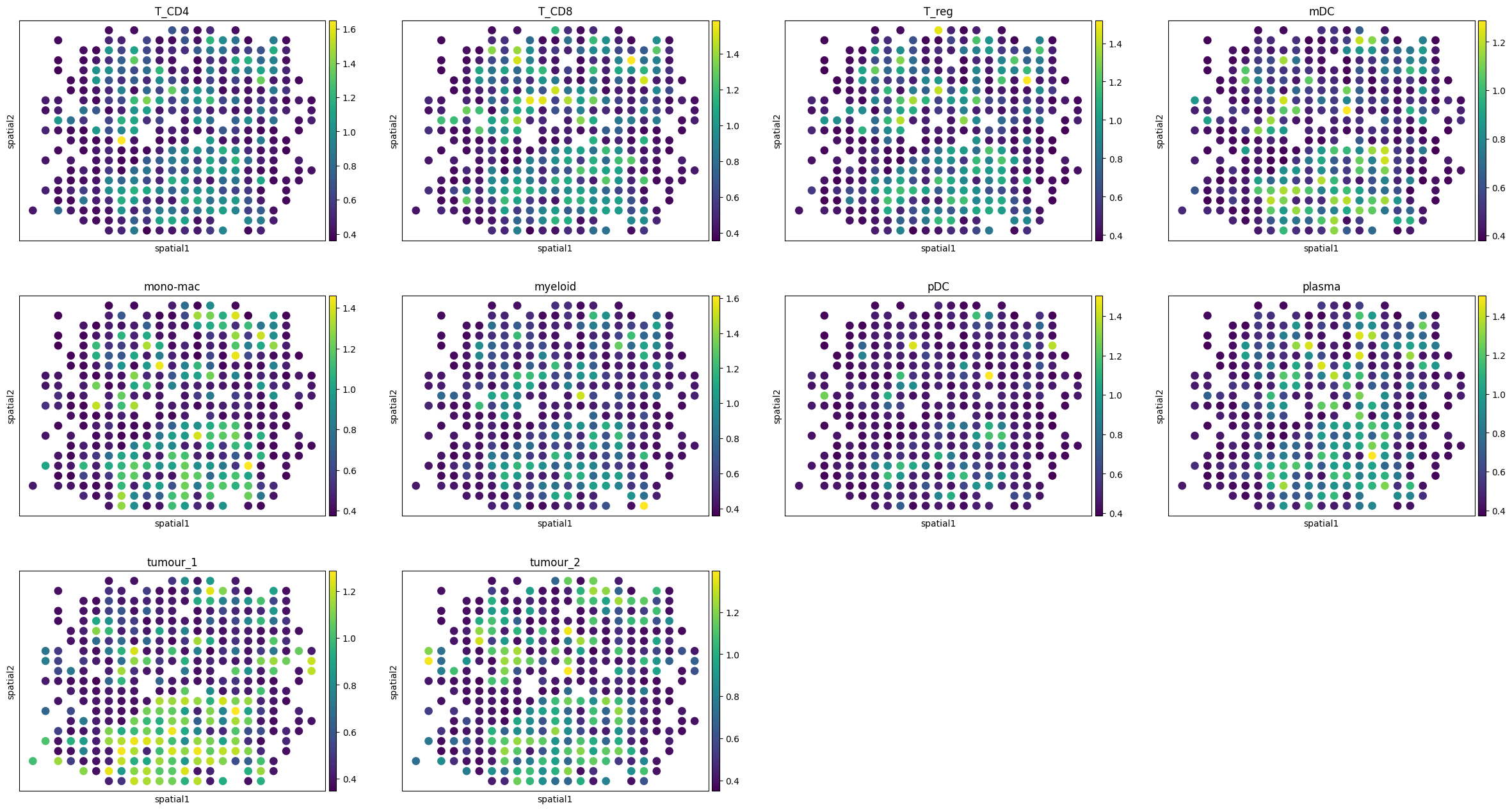

Visualize results#
[6]:
russell_st.obs[russell_st.uns["mod"]["factor_names"]] = russell_st.obsm["q05_cell_abundance_w_sf"]
sc.pl.embedding(russell_st,basis="spatial",color=russell_st.uns["mod"]["factor_names"])
[ ]:
